This Quick Start guide provides an overview of available GP-Simulator 2 Bundles, their contents, and initial setup steps.

The guide is intended for engineers and researchers performing GNSS receiver validation, spoofing resistance testing, and combined jamming & spoofing experiments in laboratory environments.


1. Overview of Available Bundles

GP-Simulator 2 is available in three predefined bundle configurations. Each bundle is delivered as a ready-to-use portable test kit and differs in functionality and scope of GNSS threat simulation.


1.1 GP-Simulator 2 Bundle — Basic Simulation

SKU: GPS2/BUNDLE/BASE


A complete starter kit for GNSS signal simulation.

Designed for receiver validation, QA testing, and system integration.


Included components:

  • GP-Simulator 2 — Core License (Perpetual, 1 PC)
  • GP-Simulator 2 — SDR Kit (1 pc)
  • Laptop (1 pc)
  • Rugged transport case (1 pc)


1.2 GP-Simulator 2 Bundle — Spoofing

SKU: GPS2/BUNDLE/SPOOF


An extended kit for GPS L1 spoofing simulation, intended for vulnerability analysis and research.


Included components:

  • GP-Simulator 2 — Core License (Perpetual, 1 PC)
  • GP-Simulator 2 option: GPS Spoofing
  • GP-Simulator 2 — SDR Kit (1 pc)
  • Laptop (1 pc)
  • Rugged transport case (1 pc)


1.3 GP-Simulator 2 Bundle — Advanced GNSS Threat Simulation

SKU: GPS2/BUNDLE/THREAT


A comprehensive solution for simultaneous GNSS spoofing and jamming tests.

This bundle combines GP-Simulator 2 and GP-Jammer platforms to evaluate GNSS vulnerabilities of time servers, drones, and critical infrastructure.


Included components:

  • GP-Simulator 2 — Core License (Perpetual, 1 PC)
  • GP-Simulator 2 option: GPS Spoofing
  • GP-Simulator 2 — SDR Kit (1 pc)
  • GP-Jammer — 3-Channel License (Perpetual, 1 PC)
  • 4-Way RF Combiner (1 pc)
  • Adalm-Pluto SDR (3 pcs)
  • SMA adapters: SMA-Female to SMA-Female (1 pc)
  • RF cables: 4 × SMA-Male to SMA-Male, 50 cm
  • Laptop (1 pc)
  • Rugged transport case (1 pc)




2. Package Layout (Advanced Bundle)

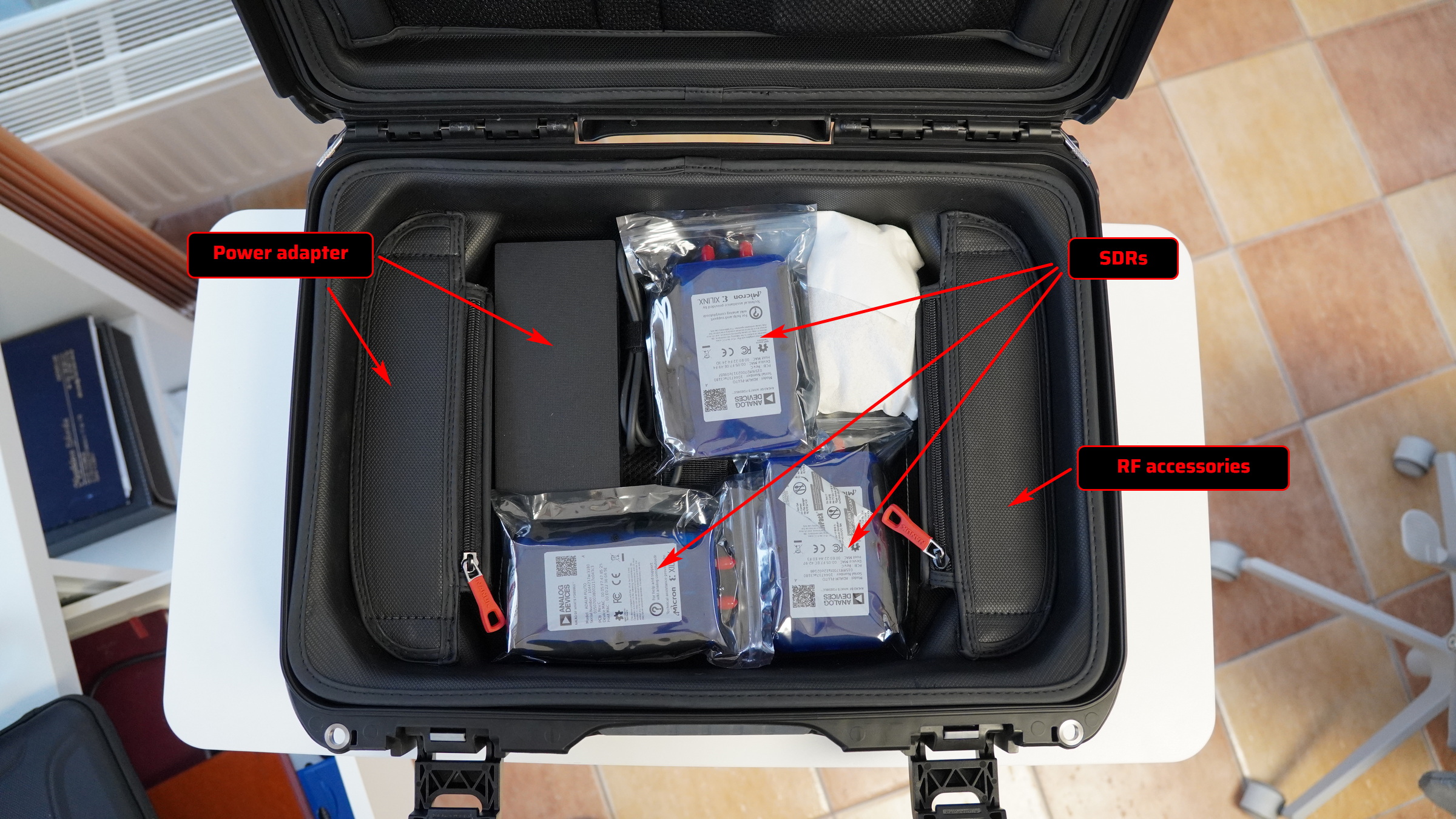

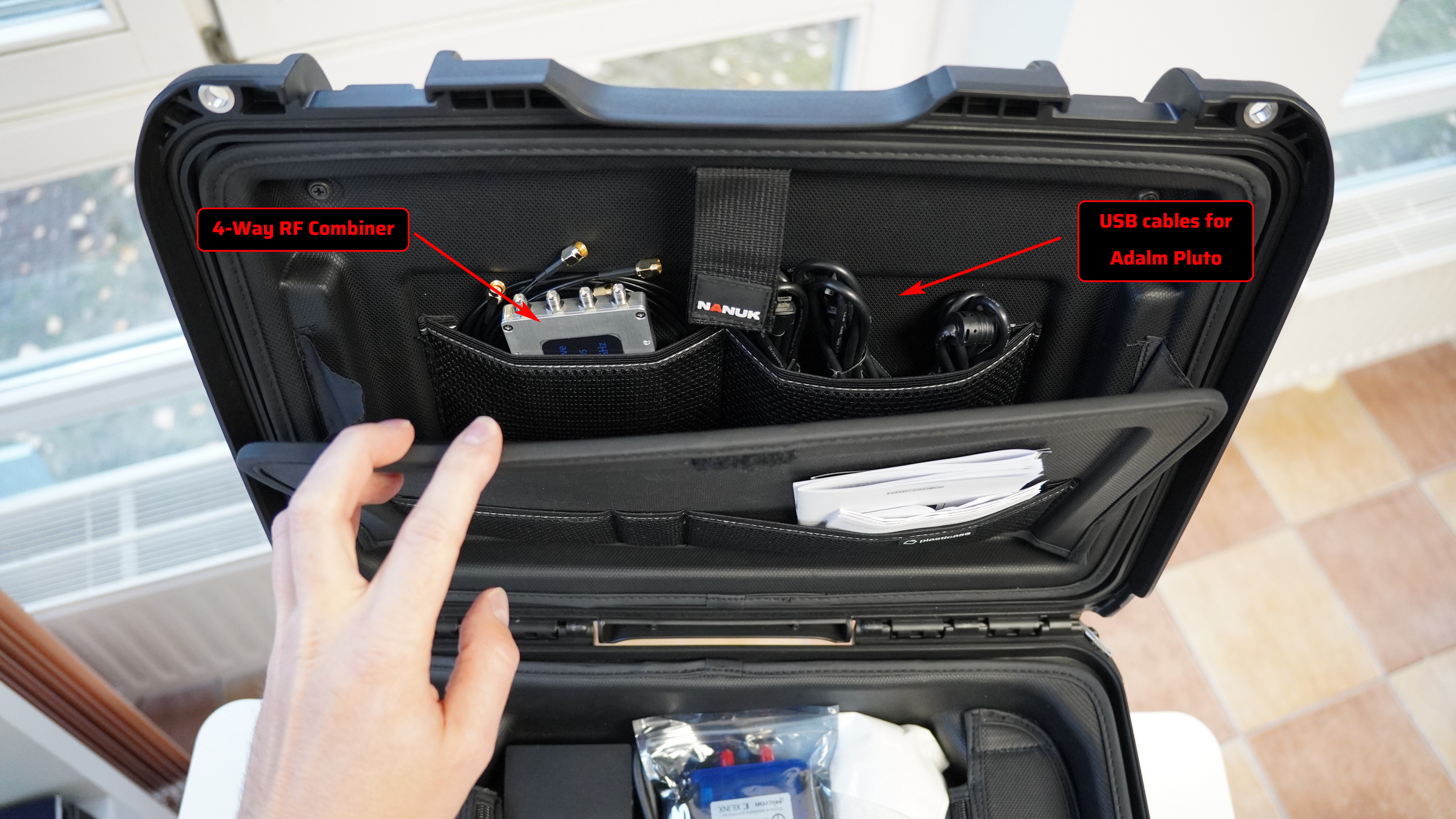

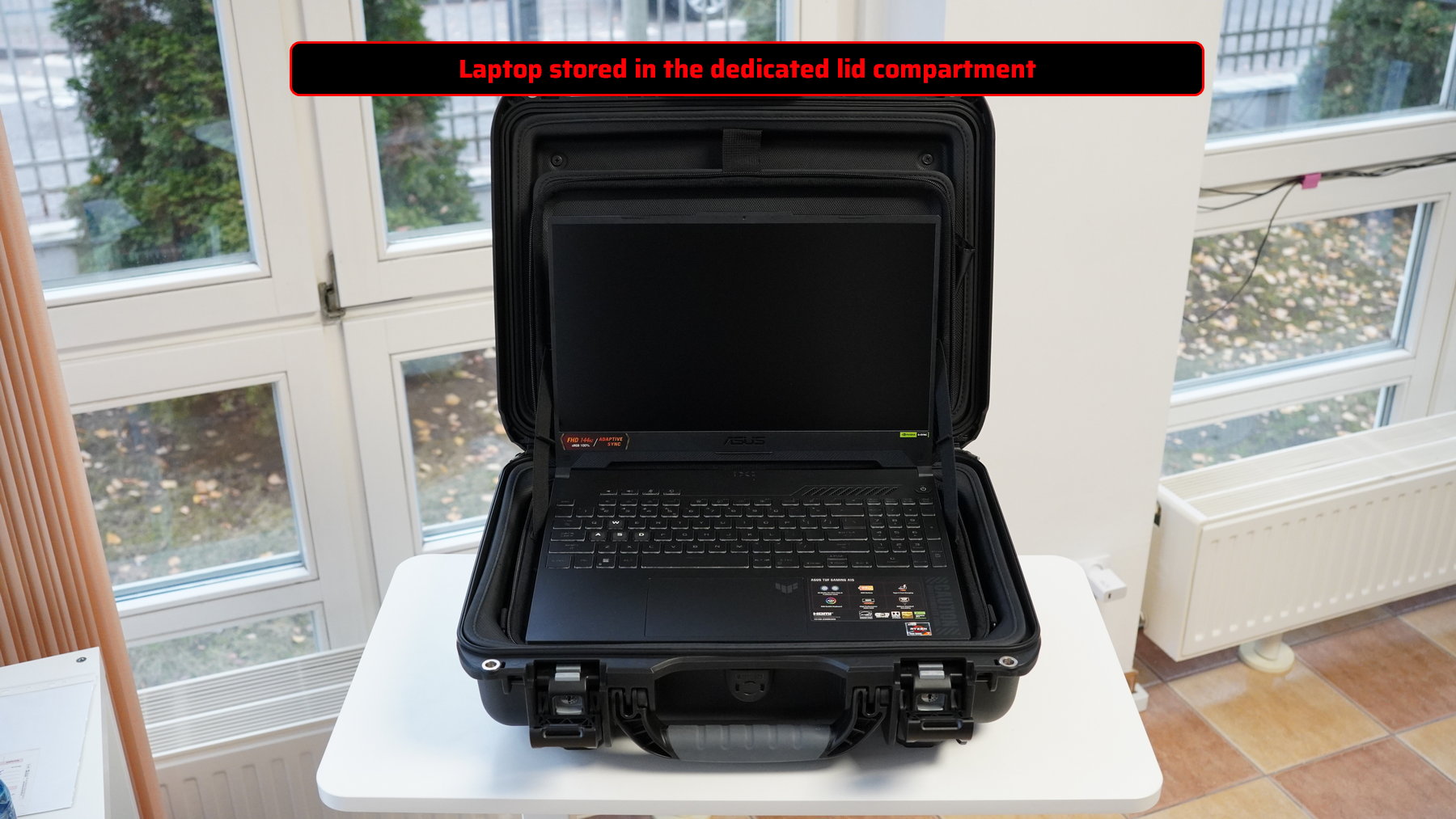

Below is an example of how the Advanced GNSS Threat Simulation Bundle is supplied in the rugged transport case.


Typical layout:





⚠️ Actual layout may vary slightly depending on regional configuration, but all RF paths and accessories are clearly labeled.



3. Connecting Hardware for Combined Spoofing & Jamming Tests

(Advanced Bundle)


This section describes the basic RF interconnection required to test a GNSS receiver under simultaneous spoofing and jamming conditions.

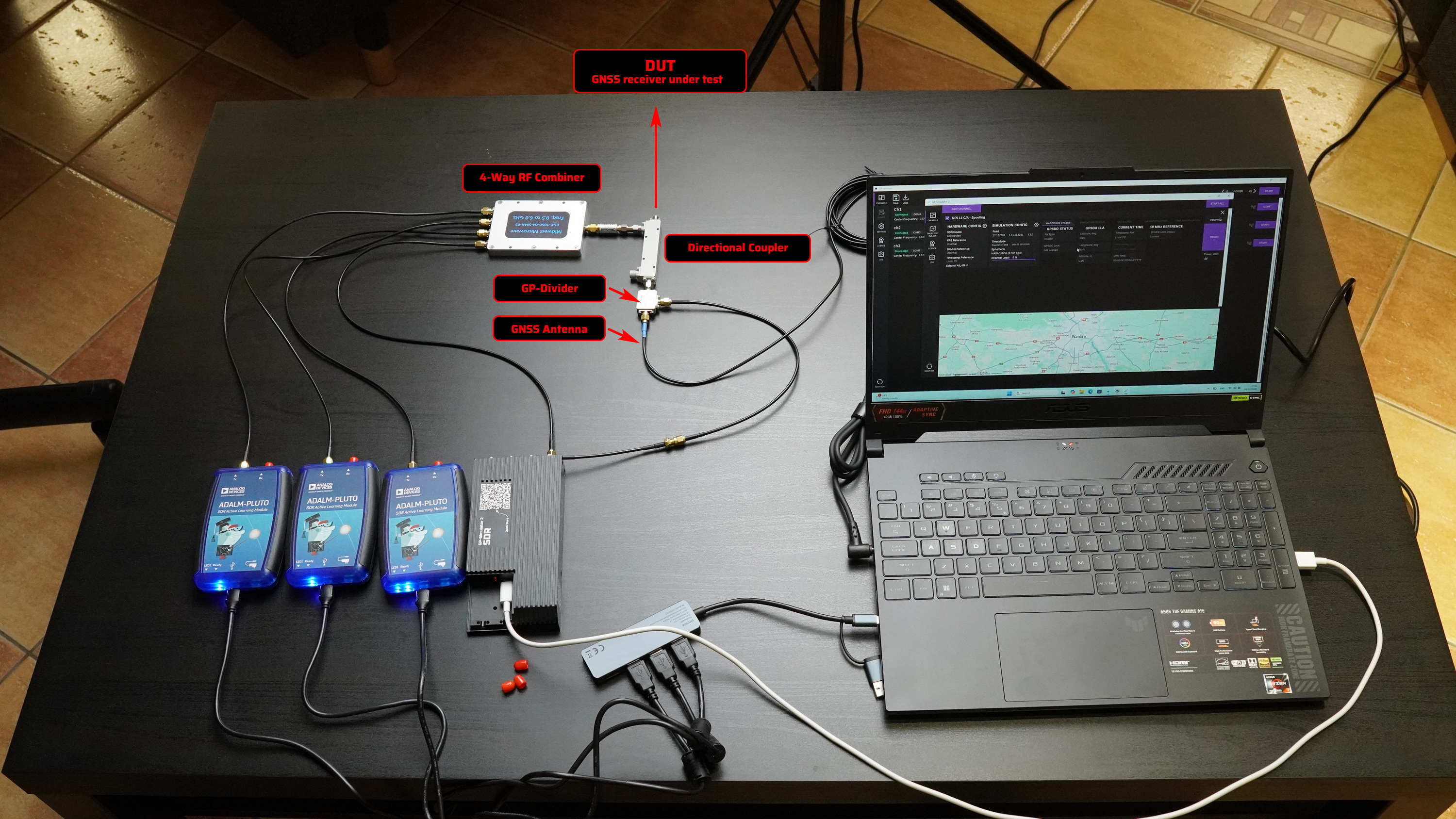

3.1 SDR and Computer Connections

The setup uses four SDR devices connected to a single control computer:


  • Three Adalm-Pluto SDRs
    These SDRs are used for jamming signal generation.
    All Adalm-Pluto units are connected to the computer via a USB hub, allowing multiple SDRs to operate simultaneously.

  • One GP-Simulator 2 SDR
    This SDR is used for GNSS signal simulation. It is connected directly to the computer via USB, without a hub, to ensure maximum stability and throughput.


The computer runs both GP-Simulator 2 and GP-Jammer software and controls all connected SDR devices.


3.2 RF Signal Combining

The TX outputs of all four SDRs are connected to the inputs of a 4-Way RF Combiner.
The RF combiner merges:

  • GNSS simulated signal from the GP-Simulator 2 SDR
  • Jamming signals from the three Adalm-Pluto SDRs


At the output of the RF combiner, a single composite RF signal is formed.


3.3 Attenuator and Directional Coupler

The combined RF signal is routed through an optional 10 dB attenuator. This attenuator is used to reduce signal level and protect the DUT input. After the attenuator, the signal is injected into one arm of a directional coupler. The arm used is the one closest to the main output that goes toward the DUT.

This configuration ensures correct signal injection with predefined power level attenuation (10 dB).


3.4 DUT Connection

The main output of the directional coupler is connected directly to the RF input of the DUT (GNSS receiver under test).

The DUT receives:

  • Live GNSS signals from the antenna
  • Injected spoofing signals
  • Injected jamming signals


This creates realistic test conditions for combined GNSS threats.


3.5 GNSS Antenna Connection


A GNSS antenna is connected to the input port of the directional coupler via a GP-Divider. The GNSS antenna can be:

  • The antenna supplied with the kit, or
  • Any compatible active GNSS antenna.


Antenna Power

Antenna bias voltage must be supplied by the DUT. No external antenna power source is required.


Purpose of the GP-Divider

The GP-Divider allows a single GNSS antenna to be used simultaneously for:

  • The DUT
  • The SDR GPSDO input (used for timing and synchronization for coherent spoofing testing)

This eliminates of the need for a second antenna



4. Next Steps


After completing the hardware setup, proceed with:
